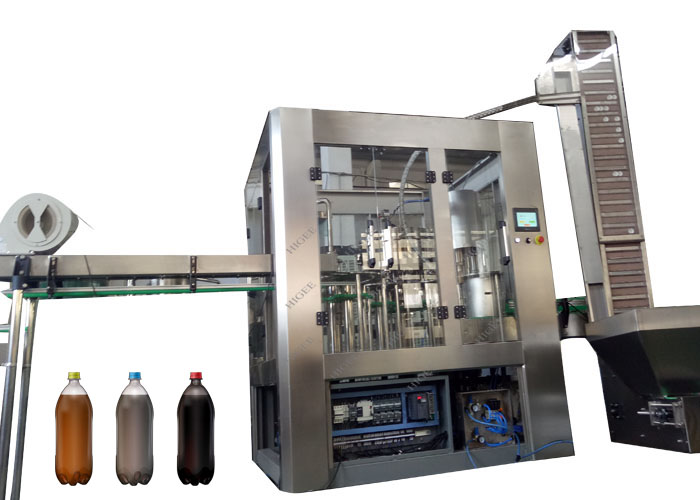

High Speed Juice Beverage Filling Machine , Stable Beer Can Filling Machine
High speed juice filling machine 3 in 1 monoblock ,carbonated filling machine, beer cans filling machine ,soda filling
Application:
This machine is suitable for filling water, non-carbonated drink, juice, wine, tea drink and other liquid, working steable with famous electrical components and working very stable.
This CGF Wash-filling-capping 3-in-1unit:Beverage Machinery is used to produce polyester/glass bottled mineral water, purified water, alcohol, tea drink and other non-gas beverage. It can finish all the process such as bottle rinsing, filling and sealing fast and stable. It can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
Technical parameters:
| Model | CGF14-12-4 | CGF18-18-6 | CGF24-24-8 | CGF32-32-12 | CGF40-40-12 |
| Capacity 500ml | 4000 | 5000-7000 | 8000-12000 | 12000-15000 | 15000-20000 |
| Bottle shape | round & square bottles |
| Cap | PET caps |
| Filling precision | ≤+/-1mm |
| Filling pressure Mpa | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 |
| Rinsing pressure Mpa | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 |
| Power kw | 4.4 | 4.4 | 5.2 | 6.2 | 7.8 |
Our machine introduction:
1.This machine is comprised of rinsing, filling and capping system.
(1) Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely.
(2) Filling: hot filling with holding bottle neck; the special backflow type of the filling valve can avoid leakage after filling and also control liquid level accurately.
(3) Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.
2.This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.
3.We are the automatic 3 in 1 juice filling machine equipment manufacturer in China.
Technical parameter:
Our machine advantage:
1. We are a manufacturing and sales company.
2. We have professional design, production, after-sales department.
6 in 1 fresh beer filling line is designed and manufactured by us.
3. Our products have been sold to many countries and regions.
We will install the machines for you and train your employees to use the machines well.
4. We use International famous brand electrical appliances.
5. We have about 20 years’ experiences in manufacturing beverage machines.
We can help you to start a new company in beverage making.
